M10-NP4000 SERIES
MULTI OUTPUT ADJUSTABLE DC POWER SUPPLY
Features
. Output On/Off function
. Constant voltage and constant current
. Max. 10mV/1mA high resolution
. USB type A and type C output (5V/2A)
. Over voltage, over current and over power triple safety protiction
. Output voltage, current and power display
. Data call and store function
Specifications
Line regulation: CV 1×10-4+3mV, CC 1×10-3+3mA , USB output: 5%
Load regulation: CV 1×10-4±3mV, CC 1×10-3±5mA , USB output: 4%
Ripple & noise: CV≤1mVrms, CC≤3mArms, USB output: 100mVp-p
Display accuracy: Voltage: ± (0.01%Rdg+2digits)
Current: ± (0.1%Rdg+2digits)
Power: ± (0.2%Rdg+2digits)
Input Voltage: 110~127VAC±10% 60Hz, 220~240VAC±10% 50Hz, Switchable
| Model | Voltage | Current | OVP | OCP | OPP | Dimensions (LxWxD) | Weight (kg) |
| M10-NP4303 | CH1: 0~30V CH2: 0~30V CH3: 0~6.5V CH4: 0~15V | CH1: 0~3A CH2: 0~3A CH3: 3A CH4: 1.5A | CH1: 0~35V CH2: 0~35V CH3: 0~8V CH4: 0~17V | CH1: 0~3.3A CH2: 0~3.3A CH3: 0~3.3A CH4: 0~1.7A | CH1: 0~120W CH2: 0~120W CH3: 0~30W CH4: 0~30W | 260×160×325mm | 8.0 |
| CH1+CH2 Series mode: | |||||||
| 0~60V | 0~3A | ||||||
| CH1+CH2 Parallel mode: | |||||||
| 0~30V | 0~6A | ||||||

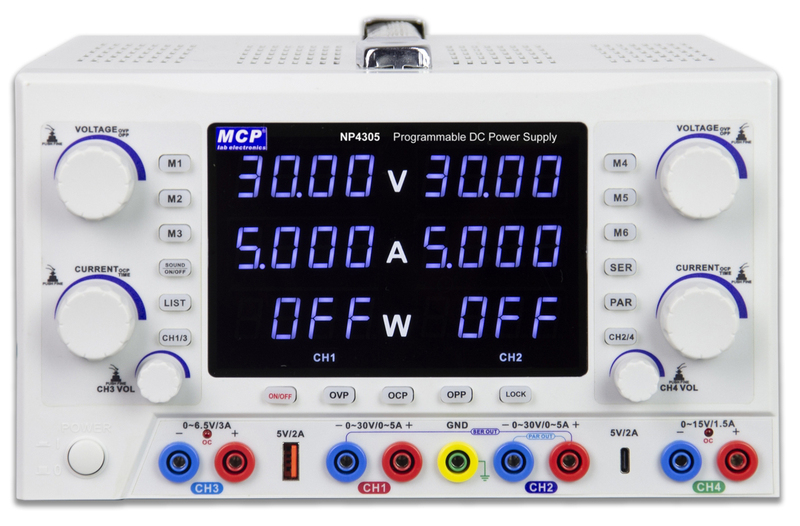

| M10-NP4305 | CH1: 0~30V CH2: 0~30V | CH1: 0~5A CH2: 0~5A | CH1: 0~35V CH2: 0~35V CH3: 0~8V CH4: 0~17V | CH1: 0~5.3A CH2: 0~5.3A CH3: 0~3.3A CH4: 0~1.7A | CH1: 0~180W CH2: 0~180W CH3: 0~30W CH4: 0~30W | 260×160×325mm | 10.0 |
| CH1+CH2 Series mode: | |||||||
| 0~60V | 0~5A | ||||||
| CH1+CH2 Parallel mode: | |||||||
| 0~30V | 0~10A | ||||||
