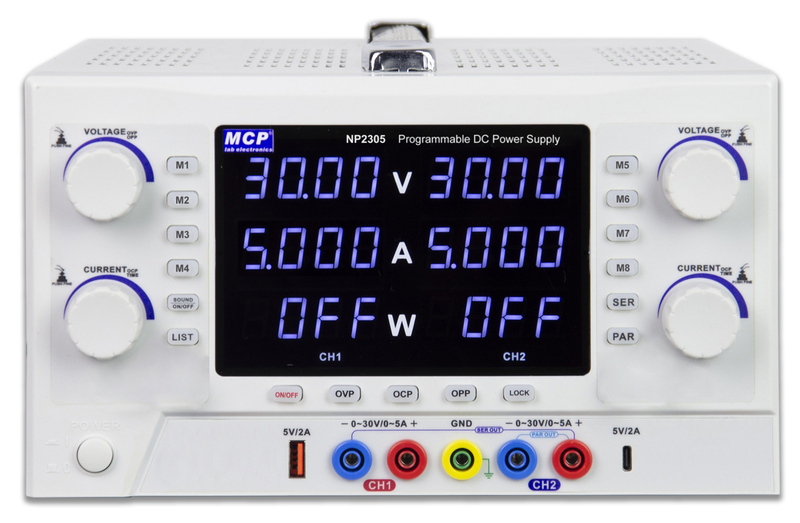

M10-NP2000 SERIES
DUAL OUTPUT ADJUSTABLE DC POWER SUPPLY

Features

. Output On/Off function

. Constant voltage and constant current

. Max. 10mV/1mA high resolution

. USB type A and type C output (5V/2A)

. Over voltage, over current and over power triple safety protiction

. Output voltage, current and power display

. Data call and store function

Specifications

Line regulation: CV 1×10^-4+3mV, CC 1×10^-3+3mA , USB output: 5%

Load regulation: CV 1×10^-4±3mV, CC 1×10^-3±5mA , USB output: 4%

Ripple & noise: CV≤1mVrms, CC≤3mArms, USB output: 100mVp-p

Display accuracy:   Voltage: ± (0.01%Rdg+2digits)

                             Current: ± (0.1%Rdg+2digits)

                             Power: ± (0.2%Rdg+2digits)

Input Voltage: 110~127VAC±10% 60Hz, 220~240VAC±10% 50Hz, Switchable
