MOTOR AND GENERATOR TRAINING STATION
MOTOR AND GENERATOR TRAINING STATION
- Products Details

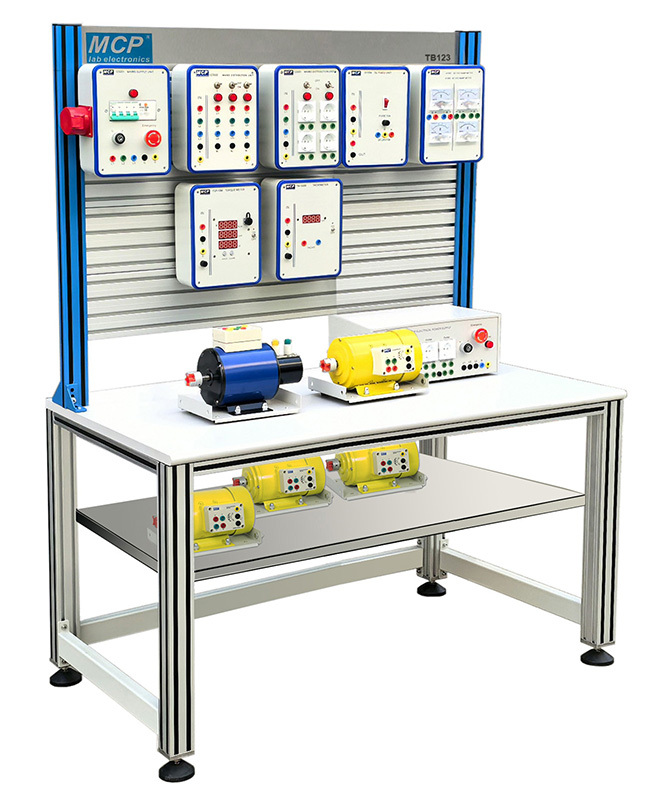

The TB123 is an all-in-one training system designed for learning motor and generator basics.
It includes various kinds ofthree phase AC motors, single phase AC motors, DC motors and
three phase generators, DC generators.
The training system has versatile function units with aquick-mounting design which allows for fast installation.
It is perfect forschools and vocational training centers.
Function units (190×255×125mm):
123001 |
123002 |
Mains supply unit . AC thermal-magnetic circuit breaker: 4P/16A/400V/30mA . Three-phase AC output: 380V/10A+N and PE | Mains distribution unit One three-phase AC input and three three-phase AC outputs with On/Off switchfor each |
123003 |
123004 |
Mains distribution unit One three phase AC input Four single phase AC outlets with On/Off switch Four single phase AC outputs with On/Off switch | DC power supply Input: 220VAC±10%,50Hz Output: 24VDC/10A Fuse:10A |
123005 |
123006 |
AC powre supply AC output frequency: 1~400Hz | Torque meter Torque measuring range: 0~±5.00Nm Rotate speed measuring range: 0~9999rpm Power display range: 0~5235W Output voltage: 24VDC Max.torque: 5Nm Adapitive sensor: TSP-5S |
123007 |
123008 |
Powder brake controller Output current: 0~1ADC, 0~3ADC Max. output voltage: 9VDC, 12VDC Adaptive power brake: PB-03B/PB-06B, PB-12B/PB-25B | Tacho meter Input voltage: 0~160 VDC Display: Max.6000rpm |
123009 |
123010 |
DC & AC volt / amp meter Measuring range: DC voltage meter: 0~30V, ±2.5% AC voltage meter: 0~30V, ±2.5% DC current meter: 0~5A, ±2.5% AC current meter: 0~5A, ±2.5% | Starting resistor Resistor (DC): 0~100Ω / Max. 0.5A Resistor (AC): 0 or 50Ω / Max. 0.5A |
123011 |
123012 |
Star-delta switch Voltage and current limits: Max. voltage: 400V Max. current: 10A | Three phase mounting plate Voltage and current limits: Max. voltage: 400V Max. current: 10A |
