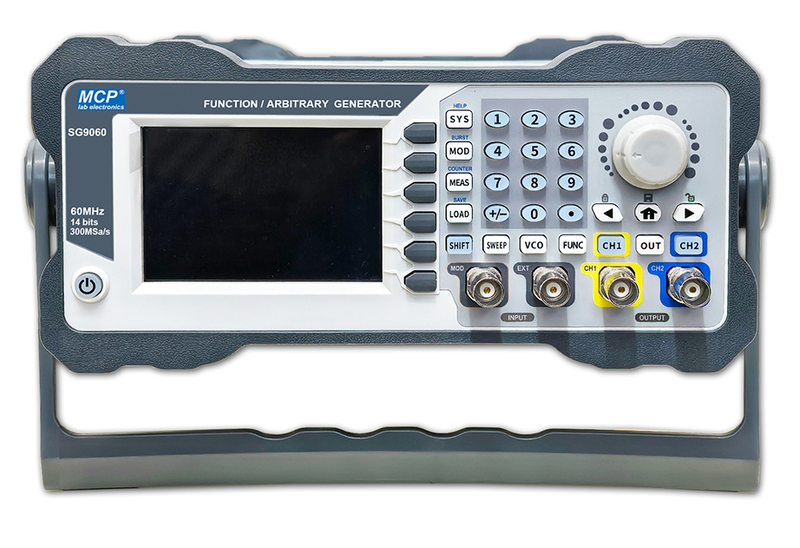

SG 9000 SERIES
DDS FUNCTION GENERATOR
Feastures:
. Compelete independence dual channels
. 8k points 14bits arbitrary waveform output
. Max. 300MSa/s sampling rate
. Max. sine wave frequency up to 80MHz
. Max. 25Vp-p amplitude output within frequency≤1Mhz
. Multi modulation function: AM, FM, PM, ASK, FSK, PSK, PWM
. Input signal measurement,sweep and counter function
. External input signa modulation range from 0~20KHz
. Support voltage control function
. Support both AC and DC power source
| Technical data | SG9060 | SG9080 | |
| Frequency Characteristics | |||
| channels | 2 | 2 | |
| Output frequency | Sine: 1nHz~60MHz Square: 1nHz~30MHz Triangle: 1nHz~50MHz Pulse: 1nHz~30MHz TTL: 1nHz-20MHz Arbitrary: 1nHz~50MHz | Sine: 1nHz~80MHz Square: 1nHz~30MHz Triangle: 1nHz~50MHz Pulse: 1nHz~30MHz TTL: 1nHz-20MHz Arbitrary: 1nHz~50MHz | |
| Pulse width adjustment range | 5ns~4s | 5ns~4s | |
| Pulse period adjustment range | 10ns-40s | 10ns-40sc | |
| Frequency minimum resolution | 1nHz(0.000000001Hz) | ||
| Frequency accuracy | ±5ppm 0 to 50℃ | ||
| Frequency stability | ±3ppm per year | ||
| Waveform characteristics | |||
| Waveform type | Sine wave, square wave, triangle wave, pulse wave (duty cycle adjustable, pulse width and cycle time precisely adjustable), ramp, CMOS wave,DC level (setting DC amplitude by adjusting bias), partial sine wave, half wave, fullwave, positive ladder wave, anti ladder wave, positive ladder wave, anti ladder wave,noise wave, exponential rise, exponential drop, logarithmicrise, logarithmic drop, cinker pulse, multi audio wave Lorentz pulseand 99 user-defined waveforms. | ||
| Wave length | 8192 points/channel | ||
| Sampling rate | 300MSa/S | 300MSa/S | |
| Waveform vertical resolution | 14bits | ||
| Total harmonic distortion | ≤0.5%(@1kHz,5Vpp) | ||
| Square wave | Rise/Fall time | ≤10ns | |
| Overshort | ≤10% | ||
| Asymmetry | ≤0.1% | ||
| Ramp/Triangle wave | Symmetry | ≤1%(<1MHz) | |
| Asymmetry | ≤1%(<1MHz) | ||
| Pulse wave | Pulse width | 5ns-4s | |
| Pulse period range | 10ns-40s | ||
| Duty clcye | 0.01%~99.99% | ||
| Rise/Fall edge | Rise/Fall edge | ||
| Overshort | ≤10% | ||
| Arbitrary wave | Wave lenth | 8192 points | |
| Vertical resolution | 14 bits | ||
| Rise/Fall time | ≤10ns | ||
| Overshort | ≤10% | ||
| ≤10% | 99 | ||
| Output characteristics | |||
| Amplitude range | Frequency≤1MHz 1MHz≤Frequency<11MHz 11MHz≤Frequency<60MHz 60MHz≤Frequency<80MHz | 2mVpp~25Vpp 2mVpp~10Vpp 2mVpp~5Vpp 2mVpp~3.6Vpp (SG9080 only) | |
| Amplitude resolution | 1mVpp | ||
| Amplitude stability | ±1%±1mVpp (@1kHz, >10mVpp) | ||
| Amplitude flatness | ±1%(0.1dB)<10MHz ±10%(0.9dB)<50MHz-60MHz ±2%(0.2dB)<10MHz-50MHz | ±1%(0.1dB)≤10MHz ±20%(1.9dB)<70MHz-80MHz ±10%(0.9dB)<50MHz-70MHz ±2%(0.2dB)<10MHz-50MHz | |
| DC Offset range | -9.99V-15.00V | -9.99V-15.00V | |
| DC Offset accuracy | 0.01V | 0.01V | |
| Phase adjustment range | 0~359.99° | ||
| Phase adjustment resolution | 0.01° | ||
| Impedance | 50Ω (typical) | ||
| Protection | Short circuit protection | ||
| Modulation | |||
| AM | Carrier wave | Sine, square, ramp, arbitrary (except DC) | |
| Source | Internal / External | ||
| Modulation wave | Sine, square, ramp, noise, arbitrary | ||
| Modulation depth | 0% to 200% | ||
| Modulation frequency | 1mHz to 1MHz | ||
| FM | Carrier wave | Sine, square, ramp, arbitrary (except DC) | |
| Source | Internal / External | ||
| Modulation wave | Sine, square, ramp, noise, arbitrary | ||
| Frequency deviation | 0.1Hz to carrier wave frequency | ||
| Modulation frequency | 1mHz to 1MHz | ||
| PM | Carrier wave | Sine, square, ramp, arbitrary (except DC) | |
| Source | Internal / External | ||
| Modulation wave | Sine, square, ramp, arbitrary (except DC) | ||
| Phase deviation | 0 to 360° | ||
| Modulation frequency | 1mHz to 1MHz | ||
| ASK | Carrier wave | Sine, square, ramp, arbitrary (except DC) | |
| Source | Internal / External | ||
| Polarity | Positive and negative | ||
| Rate | 1mHz to 1MHz | ||
| ASK amplitude | 0% to 200% | ||
| FSK | Carrier wave | Sine, square, ramp, arbitrary (except DC) | |
| Source | Internal / External | ||
| Modulation waveform | Pluse waveform with 50% duty cycle | ||
| Polarity | Positive and negative | ||
| Rate | 1mHz to 1MHz | ||
| Frequency hopping | 0.1Hz to 60MHz | 0.1Hz to 80MHz | |
| PSK | Carrier wave | Sine, square, ramp, arbitrary (except DC) | |
| Source | Internal / External | ||
| Polarity | Positive and negative | ||
| Rate | 1mHz to 1MHz | ||
| PSK phase | 0 to 360° | ||
| PWM | Carrier wave | Pluse | |
| Wave inversion | Regular and reverse | ||
| Pulse period | 0.01uS to 40S | ||
| Pulse Width | 0.001uS to 4S | ||
| Brust | Idle | Zero position, positive maximum, negative maximum | |
| Mode | Single, automatic | ||
| Trigger source | Manual, CH2 burst, external(AC), external(DC) | ||
| Pulse number | 1-1000000000 | ||
| Measurement and counter function | |||
| Measurement function | Frequency, positive/negative pulse width, period, duty cycle | ||
| Coupling method | DC, AC | ||
| Gate time | 0.001S-10.000S | ||
| Measurement mode | Low frequency, high frequency | ||
| Frequency measurement range | 1Hz~100MHz | ||
| Input signal amplitude range | 1Vpp~20Vpp | ||
| Period measurement | 10nS-4S | ||
| Pulse Width | 4S | ||
Duty cycle measurement range | 0.01%~99.99% | ||
| Counter range | 0-4294967295 | ||
| Coupling method | DC, AC | ||
| Counter method | Manual | ||
| External modulation input characteristics | |||
| Input signal amplitude range | 0~3Vpp | ||
| Input signal frequency range | DC~200KHz | ||
| Sweep characteristics | |||
| Sweep channel | Ch1 or CH2 | ||
| Carrier waveform | Sine, square, ramp, arbitrary (except DC) | ||
| Sweep function | Sweep frequency, sweep amplitude, sweep duty | ||
| Sweep mode | Linear, logarithmic | ||
| Sweep direction | Increment, decrement, round trip | ||
| Start/stop frequency | Consistent with the upper and lower limits of the corresponding carrier frequency | ||
| Start/stop amplitude | Consistent with the upper and lower limits of the corresponding carrier amplitude | ||
| Start/stop duty cycle | Consistent with the upper and lower limits of the corresponding carrier duty cycle | ||
| Voltage control characteristics | |||
| Voltage control channel | CH1, CH2 | ||
| Carrier wave | Sine wave, square wave, ramp wave, arbitrary wave (except DC) | ||
| Voltage control function | Frequency control, amplitude control and duty cycle control | ||
| Sweep mode | Linear, logarithmic | ||
| Start/stop frequency | Consistent with the upper and lower limits of the corresponding carrier frequency | ||
| Start/stop amplitude | Consistent with the upper and lower limits of the corresponding carrier amplitude | ||
| Start/stop duty cycle | Consistent with the upper and lower limits of the corresponding carrier duty cycle | ||
| Voltage control voltage range | 0V-5V, start point and stop point can be set arbitrarily | ||
| General characteristics | |||
| Display | 3.5 inch TFT color LCD screen | ||
| Interface | USB to serial interface | ||
| Extension interface | Serial port with TTL level, convenient for secondary development | ||
| Protocol | Using the command line, the protocol is open. | ||
| Waveform store | 100 groups | ||
| Supply voltage | 85V-264VAC, 47-63Hz 5VDC ± 0.5VDC, 3A | ||
| Power consumption | ≤30W | ||
| Fuse | 250VAC,T3.15A | ||
| Dimensions (W×H×D) | 247mm×102mm×243mm | ||
| Net weight | 1.0kg | ||
