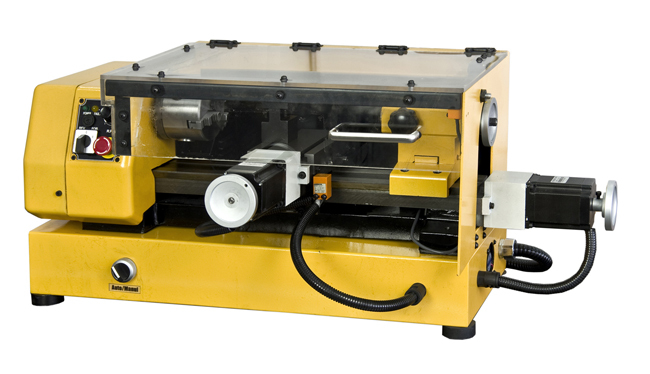

MPC1 CNC LATHE
Features
.2 in 1 and manual function
.Pre-installed hand wheel
.PC based CNC system, high reliability, operate simple
.Connect wieh PC via network cable
.G code can compatible with FANUC
.Safe and reliable whole shields shell
.High quality 2 axis step motor, high torque brushless motor
.Metric Mt3 spindle
.Safety electrical components of high quality and fast plug
.CE safety certification
| Technical Data | |||||
| Working area | Turning diameter over bed (Max.) | 140mm | |||
| Travel across slide | 75mm | ||||
| Center width | 250mm | ||||
| Spindle | Chuck diameter | 80mm | |||
| Spindle speed | 100~2000r/min. | ||||
| Spindle through-hole | 11mm | ||||
| Spindle mount | Mt2 | ||||
| Spindle motor power | 150W | ||||
| Feed (stepper) | X travel | 100mm | |||
| Y travel | 150mm | ||||
| The max. moving speed | 300mm/min. | ||||
| The mas. feeding speed | 200mm/min. | ||||
| Power of motor | 1.35Nm | ||||
| Tool rest | Toll position | 1 | |||
| Tool dimension | 8×8mm | ||||
| Tailstock | Tailstock taper | Mt2 | |||
| Tailstock sleeve diameter | 12mm | ||||
| Travel of tailstock | 20mm | ||||
| Accuracy | Positioning accuracy | 0.02mm | |||
| Repeatability accuracy | 0.02mm | ||||
| Power source | 230V or 120V | ||||
| Dimensions(W×H×D) | 730mm × 380mm × 350mm | ||||
| Packing size(W×H×D) | 830mm × 480mm × 550mm | ||||
| Weight | 45kg(NW)/65kg(GW) | ||||
| M:10091 Tailstock chuck+shank |  | M:10189 stand (1000x650x800mm) (Bench Series only) |  |
| M:10093 Rolling center |  | M:10200 Cutting set 8mm (Tin Coated) |  |
| M:10186 Hand wheel |  | M:10200-1 Tip replacement |  |
| M:10187 computer stand |  |
